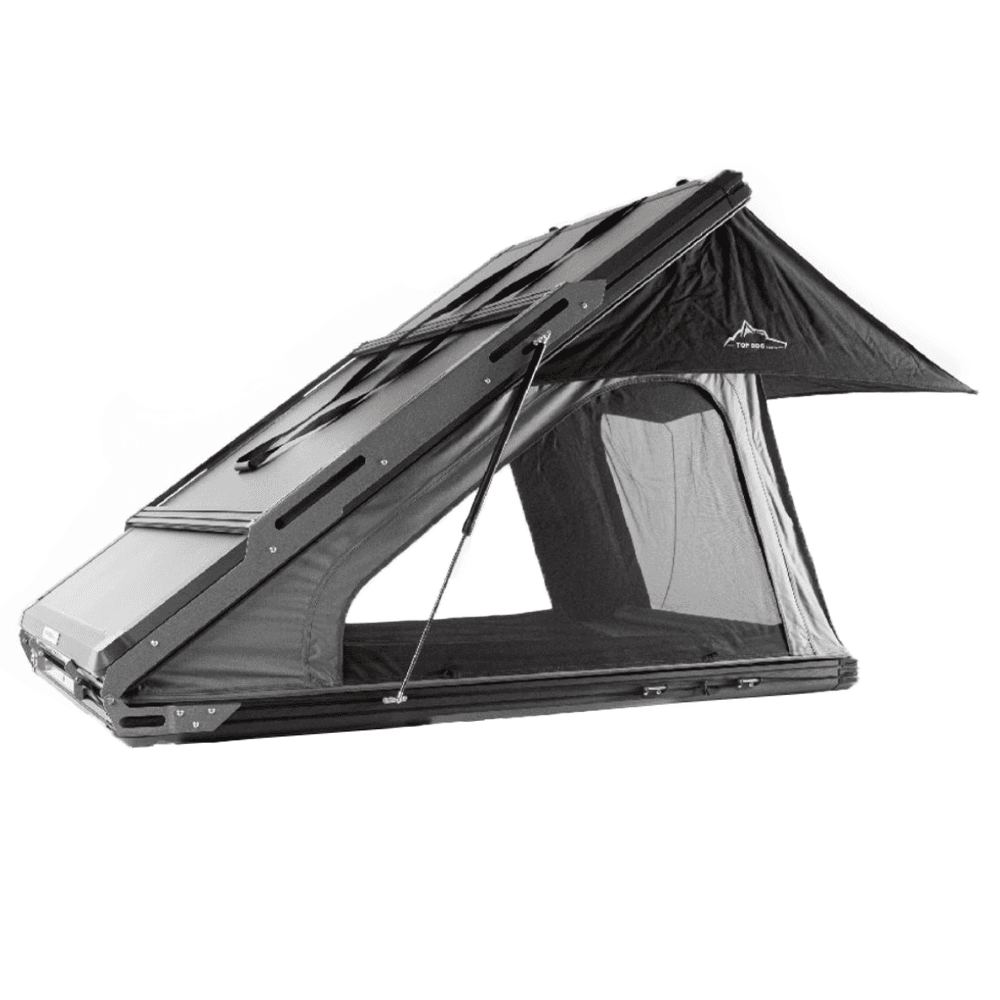

Aluminum Wedge Tent

$3,595

The serious one. Welded aluminum substructure, felt-lined honeycomb panels, 4-inch stainless hinges and a 600 lb static weight capacity. It has dual zipper cord access points so you can duct a diesel heater or an A/C unit straight into the tent.

Sleeps: 2
Weight: 238 lb*
Closed: 86 x 54 x 10 in
SKU: TD-01

* Top Dog publishes a shipping weight for this tent, not a net weight. We use the heavier figure everywhere on this site rather than estimate down.

Check your rack before you buy. At 238lb this needs more than most factory racks are rated to carry. Run your vehicle through the fitment tool — 30 seconds, and it'll tell you if the answer is no. →

Freight & first night

• Ships LTL freight, not parcel. Crate is roughly 86 x 54 x 10 in. It will not fit in a car.
• Two-person lift to get it onto the rack. Plan for a friend.
• Freight and tax quoted at checkout once we have your address.
• We confirm your rack fitment before anything leaves Fullerton — call 949-289-5255.

What you get

600 lb static weight capacity
Minimum bar spread 32 in — roof bars included
5 mm ABS hard shell with UV and color-fade inhibitors
Welded aluminum substructure with felt-lined honeycomb polypropylene panels
4 x 4 in stainless steel hinges, 2 adjustable safety locks
Dual zipper cord access points for heater or A/C ducting
Zip-off rain fly for windy conditions; interior vent closes to hold heat
Full exterior t-slot mounting around the entire perimeter
Nearly 3 in memory-foam-type mattress with anti-condensation mat
90 in aluminum adjustable telescopic ladder
2 year warranty

Full specification

Aluminum Wedge Tent specifications as published by Top Dog Tents
Shell type	Hard shell wedge
Sleeping capacity	2 person
Hard shell	5 mm ABS with UV and color-fade inhibitors
Lower shell	ABS + welded aluminum substructure, felt-lined honeycomb polypropylene panels
Canopy fabric	260 g cotton/polyester coated to 1500 mm waterproof
Canvas	280 GSM poly cotton rip-stop
Frame	Thermally insulated aluminum tubular, powder-coated aluminum top
Hinges	4 x 4 in stainless steel
Open dimensions	83 x 51 x 57 in
Closed dimensions	86 x 54 x 10 in
Sleeping footprint	79 x 51 in
Peak internal height	46 in
Back window	16 in
Static weight capacity	600 lb
Minimum bar spread	32 in
Ladder	90 in aluminum adjustable telescopic
Weight	238 lb
Color	Black
Warranty	2 years
Included	Roof bars, LED lights, memory foam mattress, anti-moisture liner

Aluminum Wedge Tent — questions

How much does the Aluminum Wedge Tent cost?

The Aluminum Wedge Tent is $3,595, sold direct by Top Dog Tents from Fullerton, California.

How much does the Aluminum Wedge Tent weigh?

Top Dog publishes a shipping weight of 238 lb for this tent and does not publish a separate net weight, so treat 238 lb as a conservative figure for load calculations.

Will the Aluminum Wedge Tent fit my vehicle?

At 238 lb it needs a rack rated above that while driving — and most factory racks are rated 110–176 lb including the rack itself, so a structural platform rack or a bed rack is usually required. Your crossbars also need to be at least 32 inches apart front to back. Use the Top Dog fitment tool to check your exact vehicle and rack combination.

How many people does the Aluminum Wedge Tent sleep?

2 person. Open dimensions are 83 x 51 x 57 in. A mattress, telescopic ladder, LED lighting and the mounting hardware kit are all included.

Does the Aluminum Wedge Tent ship freight or parcel?

Rooftop tents ship LTL freight, not parcel — this one crates at 86 x 54 x 10 in and needs two people to lift. Freight cost is quoted at checkout once we have your address, and we confirm your rack fitment before anything leaves Fullerton.
